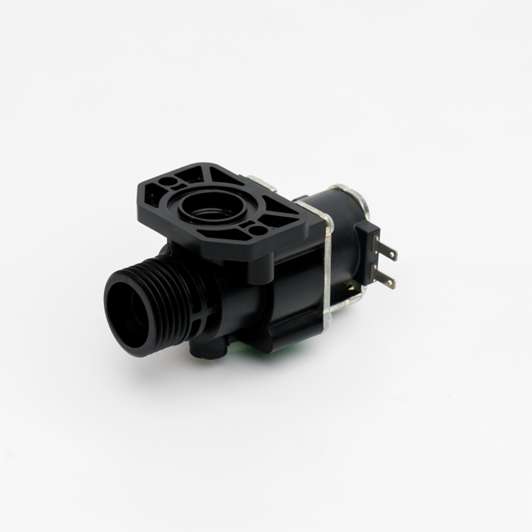

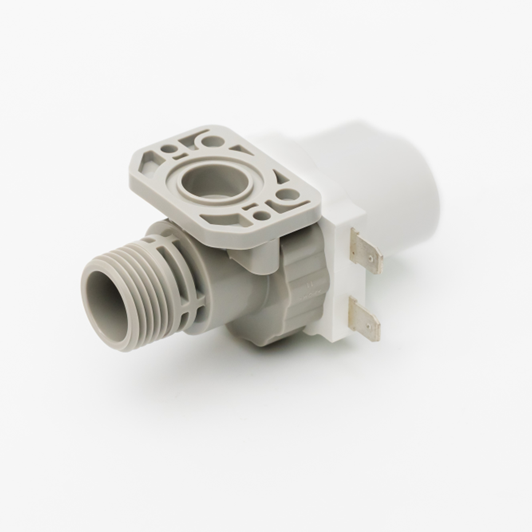

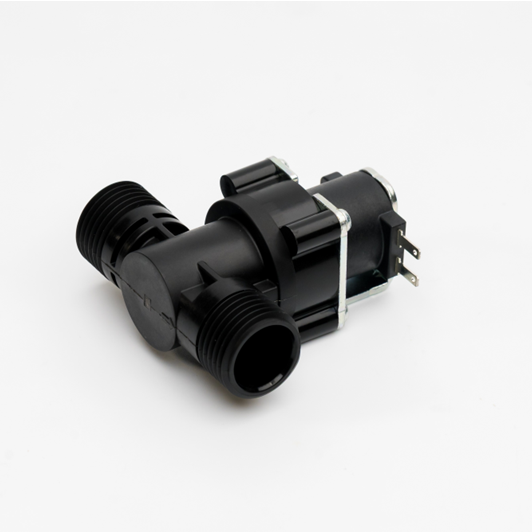

❮ ❯ Flush Solenoid Valve This product, developed by EIT to meet domestic market and customer needs, is a water solenoid valve primarily used in automatic faucets and sensor-operated urinals. Features Product Specification Examples Feature Direct Type Pulse Type Power Supply Rectifier or Transformer Alkaline or Lithium Battery Voltage Range DC 12V ±10% 4.5V–6.6V Current DC 500mA or less (at 12V) DC 300mA or less (at 6V) Power Consumption 5W or less (at 12V) 2W or less (at 6V) Pulse Width N/A ON: ≥20ms; OFF: ≥20ms Resistance 31Ω 21Ω Material Engineering Plastic Engineering Plastic Connection Type 250 Pin Type 110 Pin Type Outlet Pipe Diameter SUS G1/2 External Thread G1/2 External Thread Mechanical Life 500,000 Cycles or more 500,000 Cycles or more Pressure Resistance 17kgf/cm2, 1min 17.5kgf/cm2, 1min Applicable Water Pressure 0.05∼0.7MPa 0.05∼0.7MPa Ambient Temperature 0~50℃ 0~50℃ Ambient Humidity 95%RH 95%RH External Dimensions 40mm×51mm×80mm 37.5mm×42mm×69mm Application Range Urinal Flusher or Automatic Sensor Faucet Automatic Sensor Faucet
